Schelling skivsågar

Schelling har många års erfarenhet och hög kompetens inom såg- och hanteringslösningar för plattformade material av metall, plast och byggmaterial samt speciella kompositmaterial.

Uppdelningen av dessa material är extremt krävande. Schelling har lyckats hitta en gemensam nämnare för bearbetning av dessa material: Panelstorlek och precisionssågar baserade på cirkelsågteknik.

Man kan också erbjuda kompletta systemlösningar inklusive nödvändig kringutrustning – inklusive områdeslagringssystem samt sorterings- och staplingssystem.

Schelling:s hemsida
Schelling:s YouTube kanal
PlastsågSkivsågar
Plastsåg
Plastsåg
Plastsåg
Plastsåg

FK serien för sågning i plast

FK 4

Cut-to-size of plastic sheets been has never been this easy.

Sheets made of plastic, composite and other innovative materials require unique processing parameters in accordance to their respective material properties. The fk 4 offers optimally adapted and tried-and-tested technology to do exactly that.
It can be used for all types of materials, offers uncompromised precision, intelligent handling and a max. cutting length of up to 4,300 mm. Its solid machine design and a 21 kW aggregate provide a firm basis for day-to-day use.

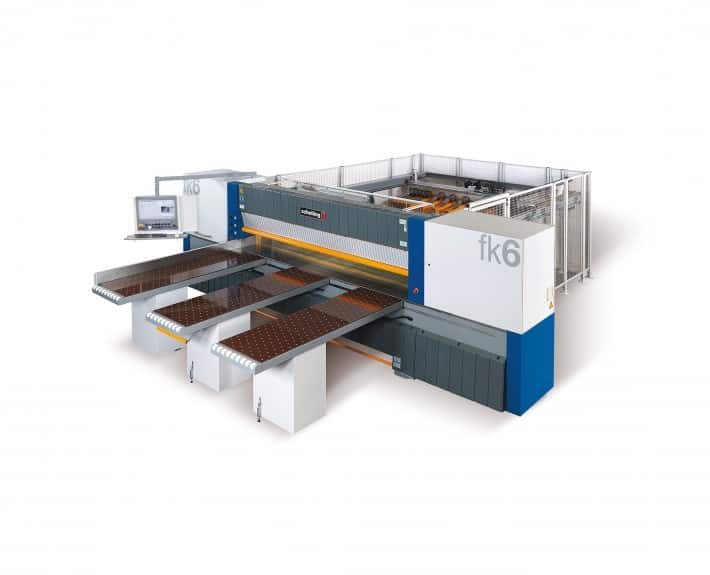

FK 6

The upper middle class in the cutting of plastic sheets.

Industrial production of plastic sheet materials demands precision and speed. This is the playing field of the SCHELLING fk 6.
With 27 kW of power and solid construction, it leads to extreme precision with a respectable output. Numerous details – including 99.5 % chip removal – realise all round productive use for many years.

FK 8

Chip removal for new levels of performance.

Industrial production requires reliable performance. SCHELLING’s fk 8 is the right choice for this. With it, you can cut various plastics in an extremely productive and precise way.
The integrated turning device in front of the saw ensures a productivity plus of around 15 %. The CLEAN-UP system realises chip removal and the dust protection equipment realises additional cleanliness. Solid construction and a 34 kW drive form the basis for this highly modern machine concept.

Prospekt FK 6
FM 6
aluminiumsåg
aluminiumsåg
metallsåg
metallsåg

FM serien för sågning i aluminium m.m.

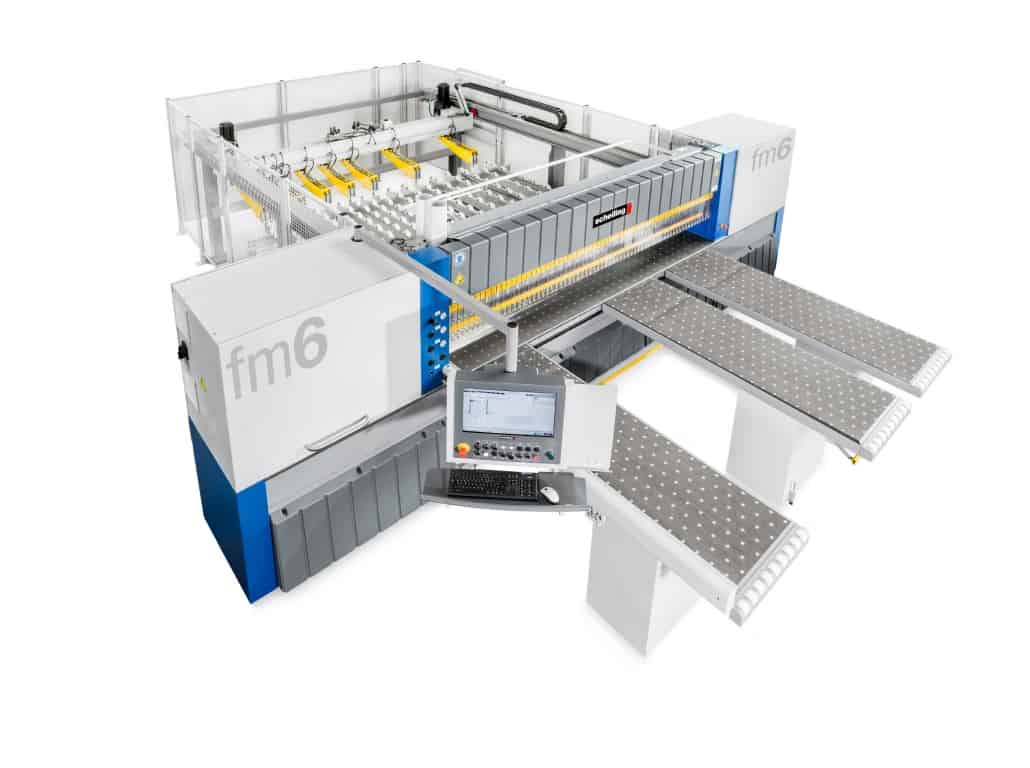

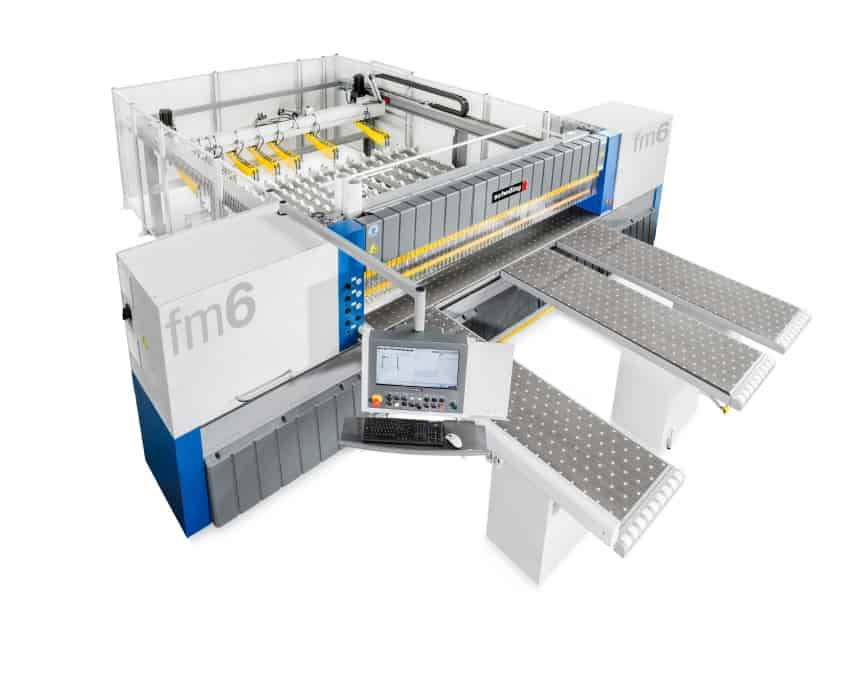

FM 6

Cutting aluminium and non-ferrous metals with a chip-free processing method.

Just like any other SCHELLING machine this precision cut-to-size saw is characterised by precision and cutting performance. The basis for this is a powerful 27 kW digital drive and a solid basic machine design.
The CLEAN-UP function patented by SCHELLING enables exceptionally clean work conditions and, hence, is highly precise: 99.5 % of the chips are exhausted. The turntable allows an increase in production of 15 %.

FM 8

Full power, solid construction

Those who want to industrially cut aluminium and other non-ferrous metal materials precisely and productively need perfect tools. The fm 8 never lets them down. The 34 kW drive supplies the massive power required for this. Numerous constructional features ensure an extremely versatile use.

Plate handling solutions, the turntable and the powerful air pressure cushion area, that make the cutting to size almost ”child’s play”, have proven to be ideal for working with heavy raw materials and workpieces.

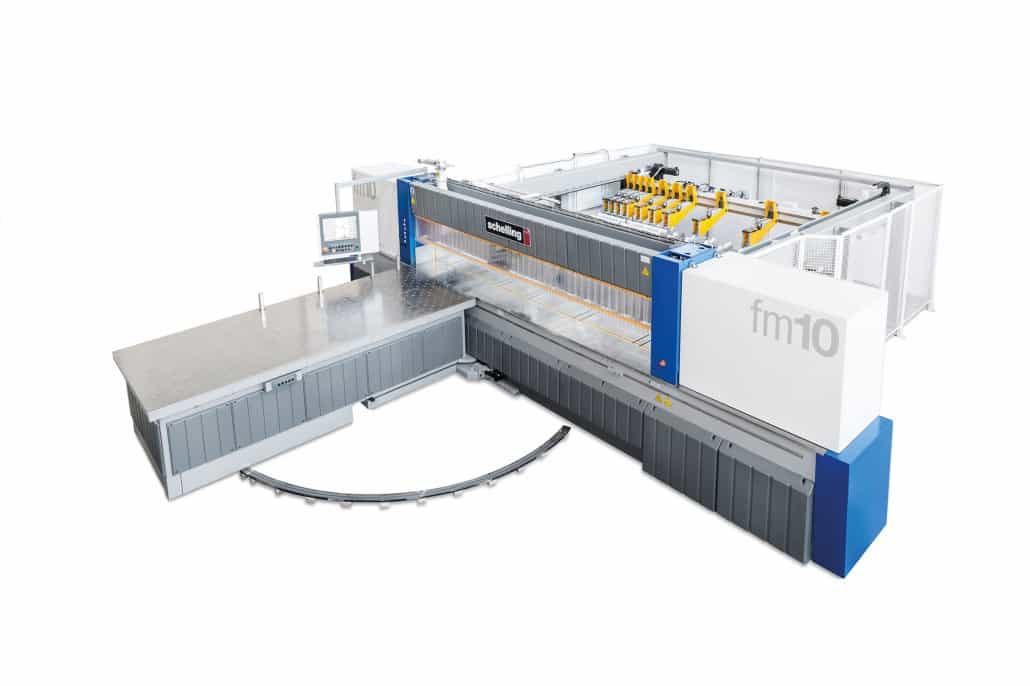

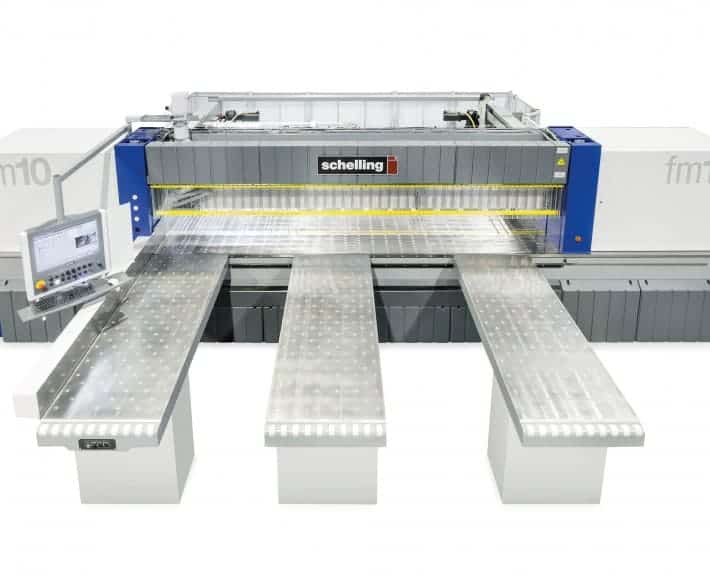

FM 10

Solid construction combined with power.

Movement on air tables surfaces: the massive design supports even more powerful, high-speed motorisation, which reduces production times.

In addition, numerous detailed improvements cut back non-productive times, increase productivity and improve ease of operation. This makes the precision saw fm 10 the global benchmark for the sawing of non-ferrous metals in the segment of demanding industrial production.

Prospekt FM 10

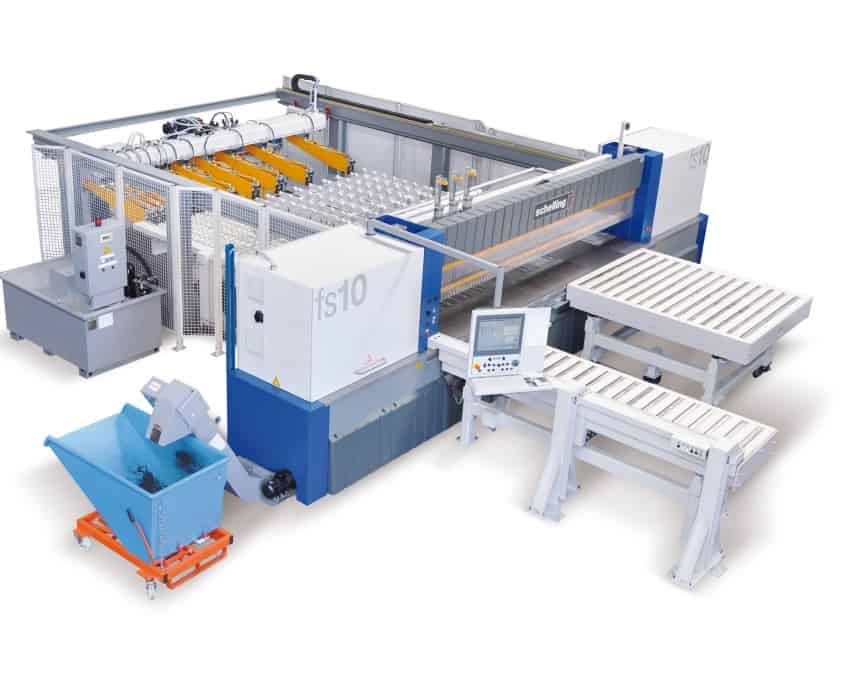

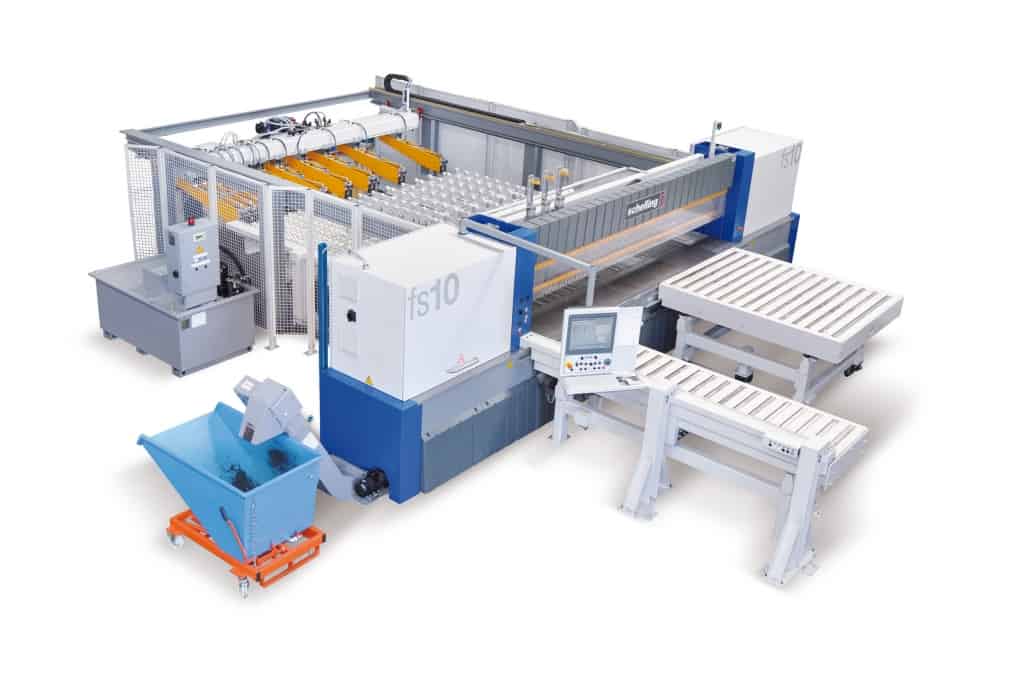

FS10

FS 10 för sågning i massiv stål

x-times faster, due to the cut-to-size sawing technology.

Cutting steel plates to size has presented an extraordinary technical challenge. With the introduction of the fs 10 saw, SCHELLING proves its leadership in plate splitting, once more.

The fully automated principle of SCHELLING precision saws for non-ferrous materials is successfully applied to hard metals for the first time with this innovative cut-to-size saw. As compared to conventional solutions, productivity can literally be doubled.

The basis of this exceptional advancement are intensive research and development coupled with SCHELLING’s knowhow and experience in the field of cut-to-size saw technology. The combination of power, solid construction and sophisticated details offers a concept that vastly increases productivity.

The SCHELLING-specific cut-to-size saw concept with a raised and lowerable saw blade provides for a unique alternative to conventional band sawing technology and allows enormous angular precision and part accuracy of +/- 0.3 mm.
