VOTECS Tuggar & Brikettpressar

SHREDDING

VOTECS shredders have for years been installed in trade and industrial operations for economical processing of wood wastes and many other materials. The machines are characterized by their robust technology and consequently reliable operation. VOTECS shredders are optimally designed for customer’s specific tasks.

BRIQUETTING

Craft enterprises and industrial operations produce wood chips, shavings and saw dust on a daily basis that take up considerable space to store and transport. By contrast, briquettes save space and are easier to transport, and unlike loose materials, present a far lower risk of spontaneous combustion.

Votecs Hemsida
Votecs YouTube kanal
Tuggar & Brikettpressar

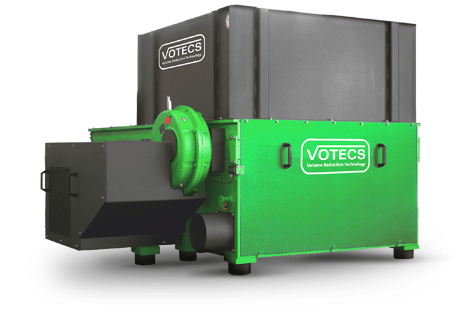

VOTECS EZ Single-Shaft Shredders

The shredder operates very quietly and dust free: The material to be shredded is firstly deposited into a large hopper. Via a hydraulically controlled pusher it is then pressed against the cutting rotor.

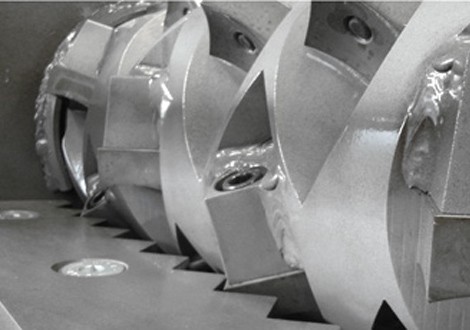

The shredding of the material occurs between a rotor shaft and a fixed opposing knife.

The pusher‘s feed rate is controlled directly and is dependent on the power consumption of the main motor. The fixed screen, located underneath the rotor, determines the desired shavings size. After shredding optional transportation of the shavings takes place via an extraction unit, a screw conveyor or a conveyor belt.

For shredding of:

  • Wood waste
  • Hardwood
  • Softwood
  • Chipboard
  • MDF
  • Paper
  • Cardboard
  • Remnants
Prospekt

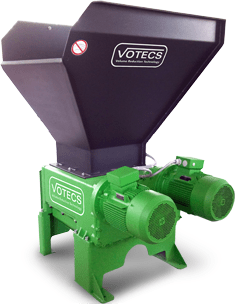

VZ Four-Shaft Shredders

VOTECS VZ Four-Shaft Shredders

For shredding of:

  • Bulky and very long timber waste
  • Timber cuts
  • Long boards and pallets
  • Types of packaging and cartons

Standard equipment:

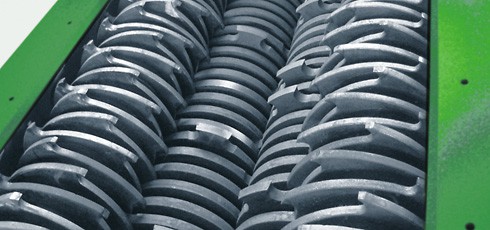

  • Cutting chamber with 2 cutter shafts and 2 spacer shafts
  • Twin drive with sealed oil bath gearbox
  • Automatic reverse and automatic overload protection
  • Breaker guide system to prevent long granulates
  • Special designs on request
Prospekt

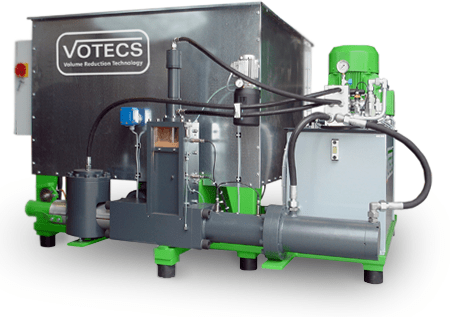

AP Briquetting Presses

VOTECS AP Briquetting Presses

Briquetting –Large volumes made small

The material to be compressed is mixed by a continually turning tube extractor in the container and then fed to the pressing mechanism by a discharge screw conveyor. The loose material is then subsequently pre-compressed. Then pressed by the press cylinder, the pre-formed briquette is transformed into its final, highly compacted form. When the defining pressure value is reached, the tongs open and the briquette is pushed out.

  • Extremely low overall height
  • Left or right hand design
  • Variable container walls

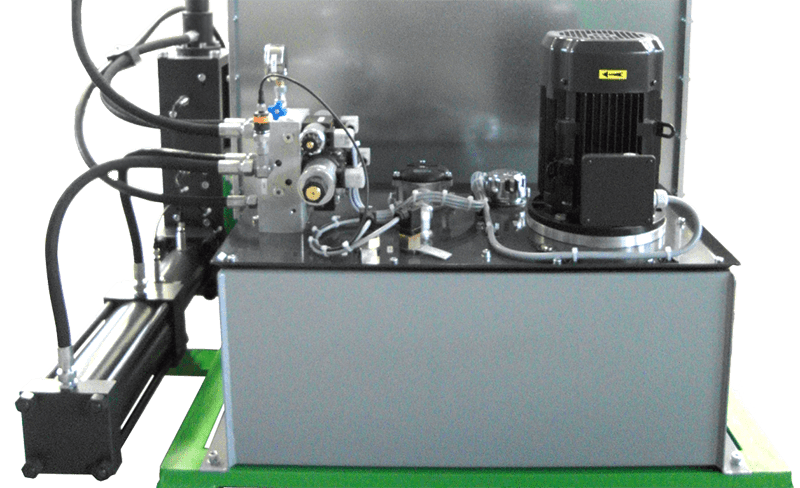

  • Hydraulic system with a separate oil tank
  • Dust sealed pre-compressor
  • End of stroke cushioned cylinder with screw cover
  • Hardened insert casing
  • Solid central main cylinder
  • SPS control
  • Stable ground frame with rubber feet
Prospekt
